03 - 开发 MCP Server

约 1061 字大约 4 分钟

2025-03-30

目标 以SSE方式 开发一个 MCP Server，实现输入sql 查询指定MySQL数据库

1、新建Spring-Boot 工程

1.1、使用start.spring.io 创建

关键信息如下： Maven构建、JDK21、SpringBoot3.4.4

<groupId>cn.spads</groupId>
<artifactId>ai-mcp-server-sse</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>ai-mcp-server-sse</name>
<description>HTTP with SSE 版MCP Server实现</description>

1.2 生成后下载解压并使用Idea打开工程

略

1.3 修改pom，新增依赖管理

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.ai</groupId>
            <artifactId>spring-ai-bom</artifactId>
            <version>1.0.0-SNAPSHOT</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

1.4 修改pom，新增仓库配置

<repositories>
    <repository>
        <name>Central Portal Snapshots</name>
        <id>central-portal-snapshots</id>
        <url>https://central.sonatype.com/repository/maven-snapshots/</url>
        <releases>
            <enabled>false</enabled>
        </releases>
        <snapshots>
            <enabled>true</enabled>
        </snapshots>
    </repository>
    <repository>
        <id>spring-milestones</id>
        <name>Spring Milestones</name>
        <url>https://repo.spring.io/milestone</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </repository>
    <repository>
        <id>spring-snapshots</id>
        <name>Spring Snapshots</name>
        <url>https://repo.spring.io/snapshot</url>
        <releases>
            <enabled>false</enabled>
        </releases>
    </repository>
</repositories>

1.4 修改pom，新增依赖

<!-- MCP Server SSE -->
<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-starter-mcp-server-webflux</artifactId>
</dependency>
<!--mybatis-plus-->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.5.5</version>
    <exclusions>
        <exclusion>
            <artifactId>mybatis-spring</artifactId>
            <groupId>org.mybatis</groupId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>3.0.3</version>
</dependency>
<!--mysql-->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.33</version>
    <scope>runtime</scope>
</dependency>
<!--lombok-->
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>1.18.30</version>
</dependency>

<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-api</artifactId>
</dependency>

<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-slf4j2-impl</artifactId>
</dependency>

<!-- Logging implementation (Log4j Core) -->
<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-core</artifactId>
</dependency>

<!-- Log4j JSON-encoding support -->
<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-layout-template-json</artifactId>
</dependency>

1.5 修改后完整pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>3.4.4</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>cn.spads</groupId>
	<artifactId>ai-mcp-server-sse</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>ai-mcp-server-sse</name>
	<description>HTTP with SSE 版MCP Server实现</description>
	<url/>
	<licenses>
		<license/>
	</licenses>
	<developers>
		<developer/>
	</developers>
	<scm>
		<connection/>
		<developerConnection/>
		<tag/>
		<url/>
	</scm>
	<properties>
		<java.version>21</java.version>
	</properties>
	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.ai</groupId>
				<artifactId>spring-ai-bom</artifactId>
				<version>1.0.0-SNAPSHOT</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<dependencies>
		<dependency>
			<groupId>org.springframework.ai</groupId>
			<artifactId>spring-ai-starter-mcp-server-webflux</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
		</dependency>

		<!--mybatis-plus-->
		<dependency>
			<groupId>com.baomidou</groupId>
			<artifactId>mybatis-plus-boot-starter</artifactId>
			<version>3.5.5</version>
			<exclusions>
				<exclusion>
					<artifactId>mybatis-spring</artifactId>
					<groupId>org.mybatis</groupId>
				</exclusion>
			</exclusions>
		</dependency>

		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>3.0.3</version>
		</dependency>
		<!--mysql-->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>8.0.33</version>
			<scope>runtime</scope>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.30</version>
		</dependency>

		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-api</artifactId>
		</dependency>

		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-slf4j2-impl</artifactId>
		</dependency>

		<!-- Logging implementation (Log4j Core) -->
		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-core</artifactId>
		</dependency>

		<!-- Log4j JSON-encoding support -->
		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-layout-template-json</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
	<repositories>
		<repository>
			<name>Central Portal Snapshots</name>
			<id>central-portal-snapshots</id>
			<url>https://central.sonatype.com/repository/maven-snapshots/</url>
			<releases>
				<enabled>false</enabled>
			</releases>
			<snapshots>
				<enabled>true</enabled>
			</snapshots>
		</repository>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
		<repository>
			<id>spring-snapshots</id>
			<name>Spring Snapshots</name>
			<url>https://repo.spring.io/snapshot</url>
			<releases>
				<enabled>false</enabled>
			</releases>
		</repository>
	</repositories>
</project>

2 开发服务和配置

2.1、配置

application.yaml

配置服务端口 9090 、datasource 配置、mybatis开启sql-runner 定义mcp server

server:
  port: 9090
  address: 0.0.0.0
spring:
  ai:
    mcp:
      server:
        name: ai-mcp-server-sse
        version: 1.0.0
        type: ASYNC  # Recommended for reactive applications
        sse-message-endpoint: /mcp/messages

  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/daily?serverTimezone=GMT%2B8
    username: root
    password: root

#开启日志
mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
  global-config:
    enable-sql-runner: true

2.2、定义MCP 工具

新建服务类： cn.spads.ai_mcp_server_sse.service.DbMcpService 应用Mybatis Sqlrunner 提供两个通用方法 查询方法和统计方法

package cn.spads.ai_mcp_server_sse.service;

import com.baomidou.mybatisplus.extension.toolkit.SqlRunner;
import lombok.extern.slf4j.Slf4j;
import org.springframework.ai.tool.annotation.Tool;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Map;

@Slf4j
@Service
public class DbService {

    @Tool(description = "获取数据库的数据，需提供标准sql")
    public List<Map<String, Object>> query(String sql) {
        log.info("Ai generate Sql: " + sql);
        List<Map<String, Object>> result = SqlRunner.db().selectList(sql);
        return result;
    }

    @Tool(description = "数据库统计数据数量, 需提供标准sql")
    public long count(String sql) {
        log.info("Ai generate Sql: " + sql);
        return SqlRunner.db().selectCount(sql);
    }

}

2.3 注册MCP 工具

cn.spads.ai_mcp_server_sse.config.McpWebFluxServiceConfig

package cn.spads.ai_mcp_server_sse.config;

import cn.spads.ai_mcp_server_sse.service.DbService;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.ai.tool.method.MethodToolCallbackProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class McpWebFluxServiceConfig {
    @Bean
    public ToolCallbackProvider tools(DbService dbService) {
        return MethodToolCallbackProvider.builder().toolObjects(dbService).build();
    }
}

2.4 启动类展示（无修改）

package cn.spads.ai_mcp_server_sse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class AiMcpServerSseApplication {

	public static void main(String[] args) {
		SpringApplication.run(AiMcpServerSseApplication.class, args);
	}

}

2.5 完整项目结构

ai-mcp-server-sse
    src/main/java
        cn.spads.ai_mcp_server_sse
            config
                McpWebFlexServiceConfig.java
            service
                DbService.java
            AiMcpServiceSseApplication.java
    src/main/resources
        application.yaml
    pom.xml

3 使用 MCP - inspector 调试

3.1、启动 inspector

C:\Windows\System32>npx @modelcontextprotocol/inspector
Starting MCP inspector...
⚙️ Proxy server listening on port 6277
🔍 MCP Inspector is up and running at http://127.0.0.1:6274 🚀

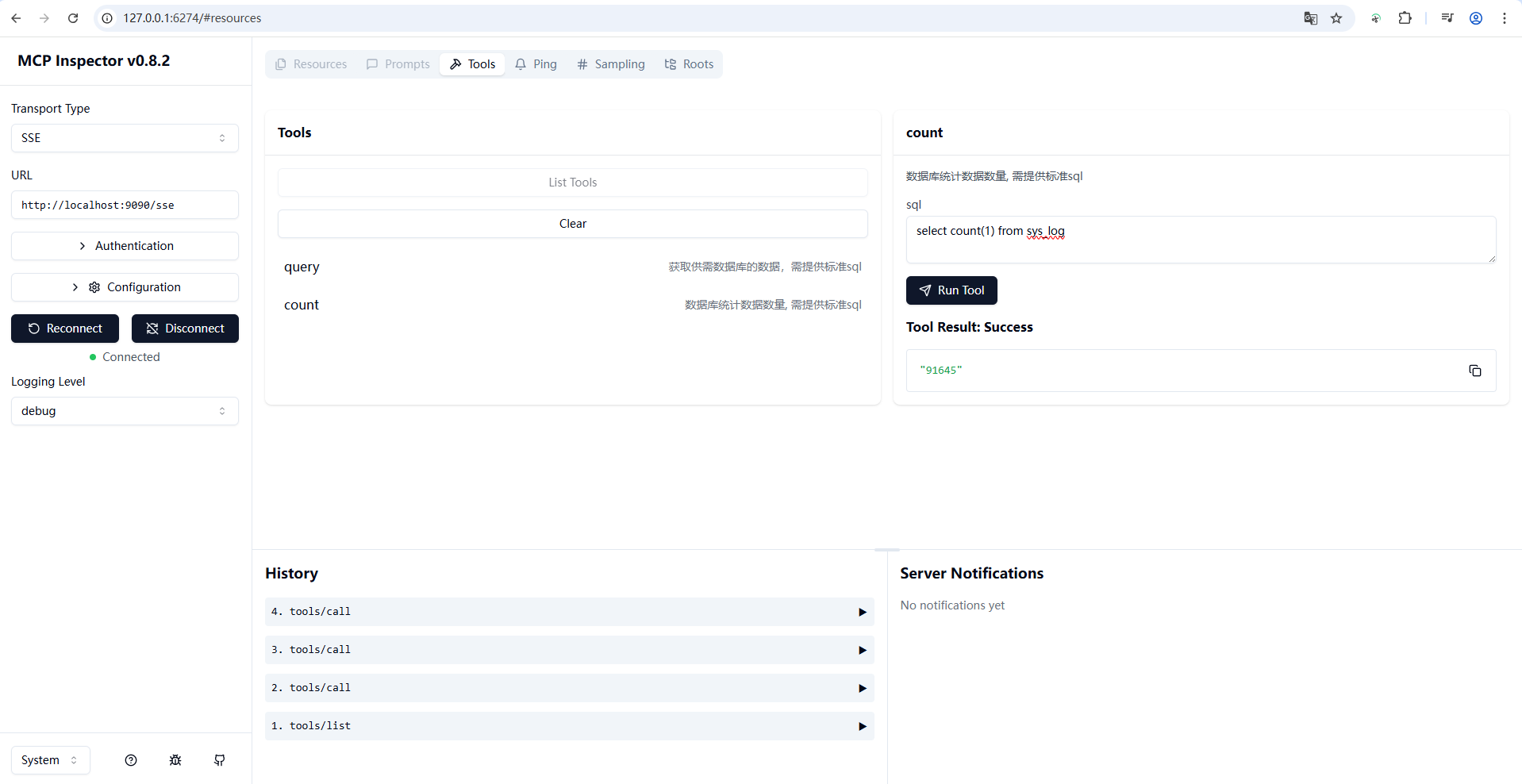

3.2 访问网址并验证

http://127.0.0.1:6274

image-20250410090601656
